Mermaid to Image

A Raycast extension that converts Mermaid syntax from selected text or the clipboard into shareable PNG and SVG diagrams.

Highlights

• Hybrid renderer: beautiful-mermaid for supported SVG diagrams, with mermaid-cli (mmdc) for compatibility fallback
• Experimental Ondine renderer: explicit SVG mode, or default-off Auto SVG/PNG for eligible diagrams in the manual command
• Selected text first, clipboard second
• Copy images directly to the macOS clipboard
• SVG output with a dedicated Copy SVG Code action
• ASCII preview item for supported beautiful-mermaid syntax
• Quick Look support for wide diagrams with cmd+y
• Raycast AI tool that uses hybrid rendering, copies an image to the clipboard, and opens the result in Preview

Requirements

No extra setup required for SVG generation

If you use:

• Render Engine = Auto or Beautiful
• Output Format = SVG
• Supported beautiful-mermaid syntax

the extension works without installing anything else.

For some SVG preview and Copy Image cases that need browser-backed raster fidelity, the extension may still ask to download a managed browser later. This mainly affects diagrams whose SVG output is known to render incorrectly through the macOS raster path, such as sequenceDiagram.

If you want to override the bundled beautiful-mermaid, the extension resolves sources in this order:

1. Custom beautiful-mermaid Path
2. Global npm install of beautiful-mermaid
3. Bundled dependency inside the extension

Required for compatible rendering and fallback

The mmdc path handles compatible output, default PNG generation, and Auto fallback. It requires:

1. Node.js (24.14.0 recommended for local development)
2. mermaid-cli
3. A compatible Chromium-based browser binary

npm install -g @mermaid-js/mermaid-cli

Required for browser-backed previews and experimental Ondine

Browser-backed SVG preview and Copy Image use Chrome/Chromium directly; they do not themselves require a global mmdc or Node.js installation. Ondine is bundled and compiles SVG locally, but its preview/copy and opt-in Auto PNG still require a browser. Install the compatible requirements above as well to keep Auto's mmdc fallback available.

Browser resolution order is:

1. PUPPETEER_EXECUTABLE_PATH
2. CHROME_PATH
3. Installed macOS app binaries such as Google Chrome / Chromium / Chrome Canary
4. A managed browser downloaded by the extension into Raycast support storage

Safari is not supported for compatible rendering. The mmdc / Puppeteer path requires a Chromium-based browser such as Google Chrome, Chromium, Chrome Canary, or the managed chrome-headless-shell downloaded by the extension.

If no browser is available and your current request needs mmdc or browser-backed SVG rasterization, the manual command will show a setup screen and offer Download Browser. The managed browser stays local to the extension and is reused for future compatible renders and high-fidelity SVG preview/copy cases.

Optional local override for beautiful-mermaid

If you want the extension to prefer your local installation instead of the bundled version:

npm install -g beautiful-mermaid

Development

• Recommended local Node version: 24.14.0; supported development versions are Node 24.14+ or 22.14+ within those major versions. Node 20 is no longer supported by the current toolchain.
• The repo includes .nvmrc and package.json.engines to make the supported Node range explicit.
• Odd-numbered Node releases such as 23.x can trigger install-time engine warnings from the toolchain even when the extension code itself is fine.
• Keep working notes, comparison galleries, generated diagrams, and local worktree copies outside the submission directory. Reproduction scripts remain in scripts/ondine-spike/.
• .gitignore controls Git tracking, not the contents copied by every publishing CLI. Inspect a separate submission directory with an explicit file inventory; never publish directly from a development directory containing ignored working data.

nvm use
npm install
npm run dev

How It Works

Manual command

1. Select Mermaid code in any app, or copy Mermaid code to the clipboard.

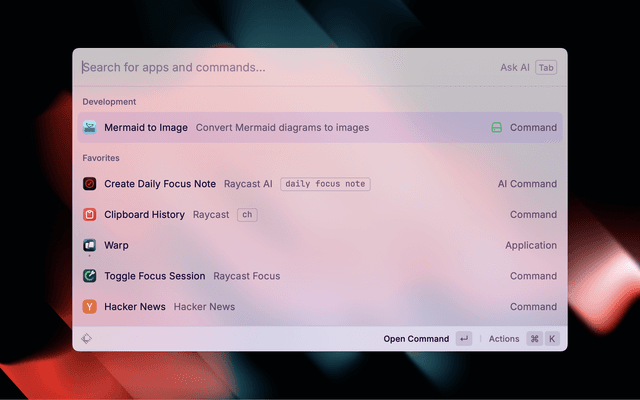

2. Run Mermaid to Image in Raycast.
3. The command uses selected text when available, otherwise it falls back to the clipboard.

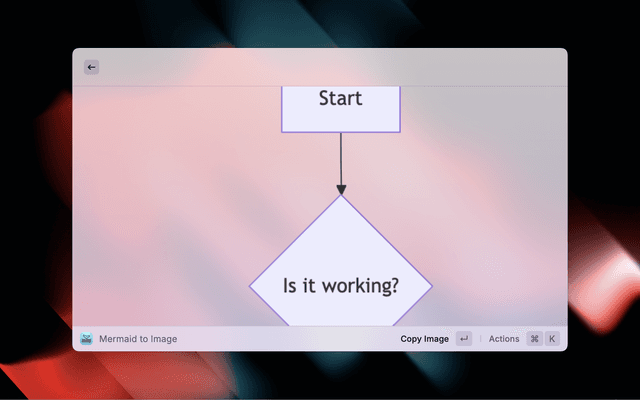

4. After rendering, you can:
   • Copy Image
   • Copy SVG Code for SVG output
   • Save Image
   • Open in Default App
   • Switch between Image and ASCII in the left sidebar when the Mermaid syntax is supported by beautiful-mermaid
   • Quick Look with cmd+y for wide diagrams
5. If the request needs compatible rendering or browser-backed SVG rasterization and no browser is available yet, the command explains why and lets you download a managed browser locally.

AI tool

Use @mermaid-to-image in Raycast AI to generate a diagram from a description.

Current AI tool behavior:

• Uses beautiful-mermaid for supported Mermaid syntax and saves an SVG
• Rasterizes supported SVG output before copying it to the clipboard
• Falls back to Compatible (mmdc) and saves a PNG when the syntax is unsupported
• Copies the image to the clipboard
• Opens the result in Preview
• Does not use Ondine, even when Use Ondine in Auto is enabled
• Saves the file to ~/Downloads/MermaidDiagrams/
• If compatible fallback or browser-backed SVG clipboard rasterization is needed and no browser is available yet, the AI tool instructs you to run the manual command once and approve Download Browser

The AI tool returns a short success message with a Preview link. It does not embed the image inline in chat. Successful AI responses also include the actual renderer used: Renderer: beautiful or Renderer: mmdc.

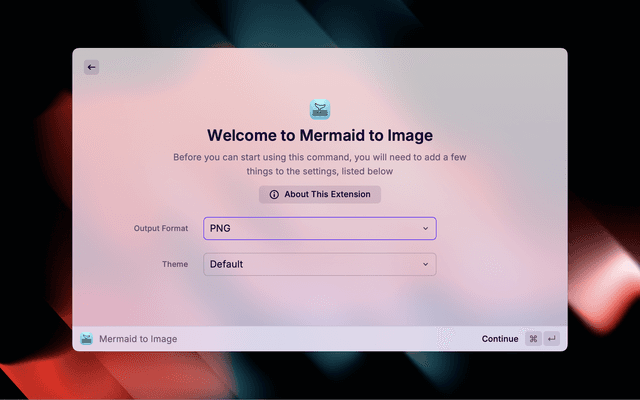

Preferences

• Output Format
  • SVG is the default and works best with Auto (Hybrid)
  • PNG
• Render Engine
  • Auto (Hybrid): preserves Beautiful SVG routing and compatible fallback; the optional Ondine route is described below
  • Beautiful: forces beautiful-mermaid SVG output
  • Compatible: forces mmdc
  • Ondine Experimental (SVG Only): forces Ondine SVG output, with no automatic fallback; PNG is rejected
• Use Ondine in Auto: default off; applies to the manual command only
  • Eligible diagrams outside the existing Beautiful families may use Ondine SVG or browser-backed PNG
  • Render failures fall back once to mmdc; source with embedded configuration bypasses Ondine
  • Does not change AI behavior or the existing Beautiful families' PNG route
• Compatible Theme: theme for mmdc rendering only
  • Applies when mmdc is the actual renderer, including compatible PNG and Auto/AI fallback
• Beautiful Theme: theme for Beautiful and Ondine
  • Beautiful uses its resolved runtime's themes; Ondine maps colors from the bundled palette only
  • A custom/global Beautiful installation does not override Ondine's runtime or palette
• Custom beautiful-mermaid Path: optional package root or direct ESM entry file to prefer over global/bundled resolution
• Generation Timeout: timeout for compatible rendering and the Ondine PNG browser subprocess
  • Not a deadline for synchronous Ondine WASM compilation or the entire Auto attempt
• Compatible Scale: raster scale for mmdc
  • Default is 4
  • Applies only when mmdc is the actual renderer
  • Does not affect Beautiful SVG or Ondine; Ondine PNG uses 3× with a 4096 px longest-edge cap
• Save Path: default save location
• Custom mmdc Path: custom executable path if Raycast cannot find mmdc

Hybrid Rendering Rules

• With Use Ondine in Auto off or unset, PNG uses mmdc and the existing Auto routes are unchanged
• With opt-in enabled, eligible non-Beautiful families try Ondine for SVG/PNG before mmdc; existing Beautiful families still use mmdc for PNG
• Auto conservatively bypasses Ondine for init directives or frontmatter in the original or cleaned source
• Explicit Ondine remains SVG-only and surfaces failures without fallback
• Copy/Save/Open failure after a successful render does not trigger another render or repeat the external action
• AI tool uses beautiful-mermaid for supported syntax and falls back to mmdc for unsupported syntax
• Auto + SVG + supported syntax tries beautiful-mermaid first
• If beautiful-mermaid fails in Auto, the extension falls back to mmdc
• Beautiful mode does not auto-fallback for unsupported syntax
• mmdc always uses a resolved browser path, preferring the user environment and otherwise a managed local browser
• Some supported SVG outputs still use browser-backed rasterization for faithful preview and Copy Image, based on the final SVG structure rather than Mermaid syntax alone

Supported beautiful-mermaid Syntax

beautiful-mermaid is currently used for these Mermaid entry points:

• graph
• flowchart
• stateDiagram
• stateDiagram-v2
• sequenceDiagram
• classDiagram
• erDiagram
• xychart-beta

With the Ondine opt-in off, other families use compatible mode in Auto.

Experimental Ondine Scope

Ondine is pinned to 0.0.3. The manual command's Auto opt-in considers these additional entry points:

• mindmap, timeline, journey, gantt, pie, gitGraph
• quadrantChart, sankey-beta, block-beta, packet-beta
• kanban, architecture-beta, requirementDiagram, C4Context
• radar-beta, treemap-beta, info

This is an entry-point allowlist, not a promise of full Mermaid feature parity. Unsupported syntax or render failures fall back to mmdc in Auto. Use Compatible for the closest Mermaid CLI behavior.

Explicit Ondine also accepts supported Beautiful-family entry points, but always produces SVG and never falls back. Embedded theme settings may not be honored in explicit mode; the result warns about detected theme directives. Auto bypasses embedded configuration instead.

Ondine preview and Copy Image use browser-backed rasterization. Auto PNG uses the same browser path at 3×, capped at 4096 px on the longest edge. Very large diagrams are scaled down. Result metadata shows the actual renderer, package version, and theme. ASCII preview remains a separate Beautiful feature.

SVG Notes

• SVG preview inside Raycast is rasterized for reliable display quality.
• Ondine and compatible mmdc SVG output use browser-backed preview/copy to avoid missing Chinese labels, incorrect fills, or missing lines in native SVG rasterization. The saved SVG and Copy SVG Code retain the SVG output.
• Copy Image for SVG copies a high-resolution image representation, not raw SVG text.
• Some SVGs, especially sequenceDiagram, use a browser-backed raster path because the macOS rasterizers drop arrowheads or other fidelity details.
• Some flowcharts with custom linkStyle arrow markers also use browser-backed rasterization because the macOS SVG rasterizers can drop the colored arrowheads while keeping the edge lines.
• Some xychart-beta line charts also use browser-backed rasterization because the macOS SVG rasterizers can drop the connecting lines while keeping the dots.
• Copy SVG Code is available when you need the original markup.
• Wide diagrams are easier to inspect with Quick Look (cmd+y).

ASCII Preview Notes

• ASCII preview is available in the manual command result screen for Mermaid syntax supported by beautiful-mermaid.
• Select Image or ASCII from the left sidebar.
• The ASCII renderer uses pure ASCII characters, not Unicode box drawing characters.
• ASCII preview availability is based on the Mermaid syntax, not on whether the final image was rendered by beautiful-mermaid or mmdc.
• When no local beautiful-mermaid install is found, the extension falls back to the bundled version and shows a one-time notice with the bundled version number.

Class Diagram Compatibility Note

beautiful-mermaid supports classDiagram, but some complex or legacy class member forms may render differently than mmdc.

If you need the most compatible class diagram rendering, use:

• Render Engine = Compatible, or
• Render Engine = Auto with PNG

File Management

Manual command

• Renders into temporary files under Raycast support storage
• Cleans up temporary files when the preview closes
• Cleans up stale temporary files on launch

AI tool

• Saves generated diagrams permanently to ~/Downloads/MermaidDiagrams/
• Uses SVG for supported hybrid output and PNG for compatibility fallback
• Keeps generated files for later reuse

Release Checklist

Before publishing to the Raycast Store:

1. Review and commit the intended source changes yourself, then prepare a clean submission directory without development evidence, local worktrees, dependency folders, or .DS_Store files. Do not rely on .gitignore as a publishing filter.

2. Follow Raycast's preparation requirements, including the latest API requirement. Review API upgrades explicitly and regenerate package-lock.json with npm rather than editing it by hand.

3. Keep README.md, CHANGELOG.md, and manifest preferences aligned. Keep the newest changelog heading on {PR_MERGE_DATE} until merge. Keep the Ondine opt-in default off and the AI route unchanged.

4. Retain the Ondine and Pele MIT notices when distributing their bundled code.

5. Replace outdated Store screenshots using Raycast Window Capture: 2000 × 1250 px PNG, one consistent background, no personal data or unrelated apps/commands. Put Store screenshots in metadata/, runtime files in assets/, and any README-linked images in top-level media/.

6. Run the checks below. A build validates distribution but does not publish:

   npm run verify
   node --test scripts/ondine-spike/phase-2-*.test.mjs


7. Test the distribution build in Raycast and record actual results:

   • Existing Beautiful SVG cases: flowchart, custom linkStyle arrows, sequence, and xychart-beta lines
   • Opt-in Auto SVG/PNG: Chinese mindmap and timeline in Light/Dark, with renderer/version/theme metadata
   • Real Copy Image/paste, Save/Open, off-switch, configuration bypass, and explicit Ondine PNG rejection
   • Missing-browser setup and retry; no automatic download from AI
   • AI Beautiful success and compatible fallback, unchanged with the Ondine preference enabled

8. Review the actual archive size and independently installed execution. Publishing is a separate action: npm run publish authenticates with GitHub and creates or updates a Store pull request. Do not use it as a local validation command.

Examples

Flowchart

flowchart TD
  A[Start] --> B{Continue?}
  B -->|Yes| C[Do Work]
  C --> D[Done]
  B -->|No| E[Stop]

Sequence Diagram

sequenceDiagram
  participant User
  participant API
  participant DB
  User->>API: Request profile
  API->>DB: Query user
  DB-->>API: User data
  API-->>User: Response

Class Diagram

classDiagram
  class Animal {
    +String species
    +speak() void
  }
  class Dog {
    +bark() void
  }
  Animal <|-- Dog

Troubleshooting

• No input found
  • Select Mermaid code in the frontmost app, or copy it to the clipboard first.
• mermaid-cli not found
  • Install it with npm install -g @mermaid-js/mermaid-cli, or set Custom mmdc Path.
• Chrome/Chromium not found
  • Run Mermaid to Image, then choose Download Browser from the setup screen.
  • Safari cannot be used for compatible rendering; mmdc requires a Chromium-based browser.
• Sequence diagram preview or copy is missing arrows
  • Update to the latest extension version. Sequence-style SVGs now use browser-backed rasterization instead of the macOS SVG raster path.
  • If prompted, approve Download Browser once from the manual command.
• Flowchart linkStyle colors are present but arrowheads are missing
  • Update to the latest extension version. Affected flowcharts now use browser-backed rasterization when custom link markers are emitted.
  • If prompted, approve Download Browser once from the manual command.
• xychart-beta line charts show only dots without connecting lines
  • Update to the latest extension version. Affected line charts now use browser-backed rasterization instead of the macOS SVG raster path.
  • If prompted, approve Download Browser once from the manual command.
• Beautiful mode failed
  • The syntax may not be supported by beautiful-mermaid. Switch to Auto or Compatible.
• Selection failed
  • Some apps do not expose selected text to Raycast. Clipboard fallback still works.

Credits

• beautiful-mermaid
• @mermaid-js/mermaid-cli
• Ondine and its Pele ported portions; see MIT notices
• Mermaid

License

MIT
